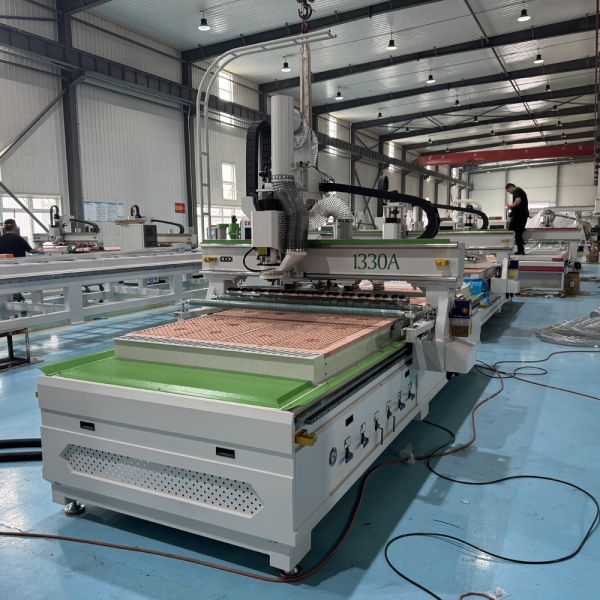

1330A 9kW CNC Nesting Router For Wood Processing Applications
Meet the 1330A - a clever wood cutting machine that brings professional results to your workshop. It handles everything from sturdy cabinet boxes to fancy decorative doors. With its smart design and reliable performance, this machine makes complicated jobs simple.
What Makes It Special:
This machine thinks ahead. Its Taiwan-made brain (the control system) is straightforward to use. The powerful 9kW spinning head can switch between 12 different tools automatically. Imagine finishing a detailed carving and having the machine immediately change to a drilling tool without any pause. That's the efficiency it brings.
Precision is key. The machine glides on solid steel tracks, while its driving mechanism uses quality gears for perfect movement. Your cuts will be sharp and accurate every time. The table has a smart vacuum system that holds your material securely in place, plus two rolling presses that keep the board flat during operation - especially useful for thin materials.
It keeps your workspace tidy. A specially designed cover captures most of the dust right at the source, working seamlessly with your dust collection system. All cables move safely within protective chains, preventing wear and tear.
Built to last, the machine's body is constructed from heavy-duty steel that's been heat-treated for extra strength. This means it stays steady and reliable even during demanding projects.
Technical Specifications
| Component | Specification |
| Machine size | 4300*2000*2100mm |
| Sheet processing dimensions | 3050*1220*18mm |
| Running Speed | 60m/min |
| Drive type | X/Y rack; Z screw |
| Table structure | Partitioned vacuum adsorption table |
| Spindle power | 9kw |
| Spindle speed | 18000~24000r/min |
| Maximum operating speed | 20m/min |
| Operating voltage | AC380/3PH/50HZ |
Customization Available: We offer model and configuration customization based on customer requirements. Orders require prepayment. Please contact our team for specific pricing based on your desired configuration.
Key Features
Control System: Taiwan LNC-Buyu control system. Stable, fast response, user-friendly interface for simpler, more intuitive operation.
Zoned vacuum adsorption table with screw fixation. Patented design, stronger suction, prevents small boards from shifting.
Spindle: CC / 9KW high-power automatic tool change spindle, 18000-24000r/min. High cutting torque, fast speed, smooth operation.
Linear 12-tool magazine. Meets customer needs for processing both cabinets and doors. Currently the highest tool capacity on the market.
XYZ drive motors: Servo motors 1.5KW. Drives: Servo drives (matched to the above motors).
Patented dust collection hood. Excellent dust collection effect, even cleans dust from the cutting groove.
Reducer: Japan Shimpo reducer, using helical planetary structure design for higher precision and longer service life.
Steel beam. Both the bed and beam undergo quenching and shot blasting, processed by a 5-face CNC machining center.
Guide Rails: Taiwan steel guide rails (25MM), higher precision, higher hardness.
11KW vacuum pump. High-power adsorption ensures small boards do not shift.
High precision, 1.5 module P &C rack and pinion transmission. Fast speed, high accuracy, wear-resistant material.
Drag chain: Imported layered and separated type. Each wire is separated individually for easy troubleshooting.
Enhanced Functionality
- Combines door panel and cabinet machining capabilities
- Rapid plunge function for efficient drilling operations
- Form sequencing processing function for streamlined workflow
- Start-from-behind function for convenient operation
Why Choose This Machine?
This machine combines two functions in one unit. You can create basic cabinet components and elaborate door designs using the same equipment. It includes time-saving features like rapid drilling, the ability to queue multiple projects, and a convenient start button at the loading position - no more running back and forth to begin a new job.
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao city, Shandong province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.
Q4: This is the first time I use this kind of machine, is it easy to operate?
A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.
Q5: What's your MOQ and delivery?
A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.
Q6: How is your after sales service?
A6: Our sales team is available 24/7. We also provide overseas installation services.
Q7: If my machine is broken, can you repair it for me?
A7: Yes. We offer free online training. For major issues during warranty period, we provide repair services.
